App-V Server Connection Groups Dialog Box

AdminStudio 2025 R2 | 30.0 | Application Manager

App-V Server virtual environments are called connection groups. You can create App-V 5.0 connection groups to generate connections between virtualized applications that allow the applications to communicate with each other while they run in the virtual environment.

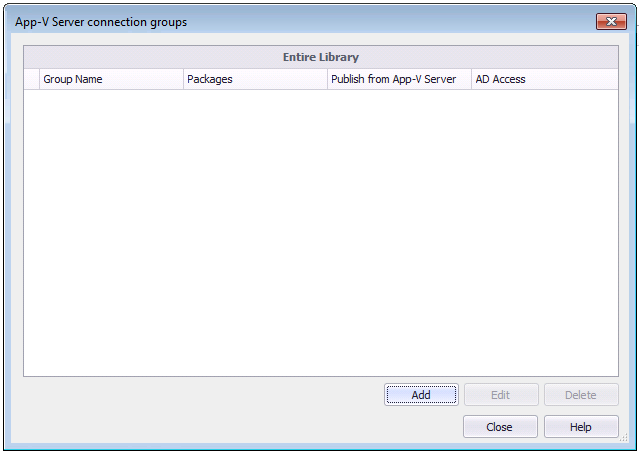

The App-V Server Connection Groups dialog box, which is opened by clicking the App-V Virtual Environments button in the ribbon and selecting App-V Server Environment, lists the connection groups that have already been defined. You click Add on this dialog box to create a new connection group or Edit to edit an existing connection group.

note

You can also open the App-V Server Connection Groups dialog box by selecting an App-V 5.0 package in the tree, and then clicking in the Connection Group field on the Home Deployment Type View > App-V Deployment Data > Advanced Settings tab.

The App-V Server Connection Group dialog box includes the following properties:

Property	Description
Group Name	Name that identifies the connection group.
Packages	List of packages in the connection group.
Publish from App-V Server	Icon indicating whether the `Publish from App-V Server` option is set to `True` or `False` . A checked checkbox indicates that it was set to `True` , while an empty checkbox indicates that it is set to `False` .
AD Access	Active Directory group that has access to this connection group.
Add	Click to open the `Configure Connection Group` dialog box where you can create a new connection group.
Edit	Click to open the `Configure Connection Group` dialog box where you can edit the selected connection group.
